Urban 500
Move your mouse over image or click to enlarge
Urban 500
Urban 500
Urban 500

Urban 500

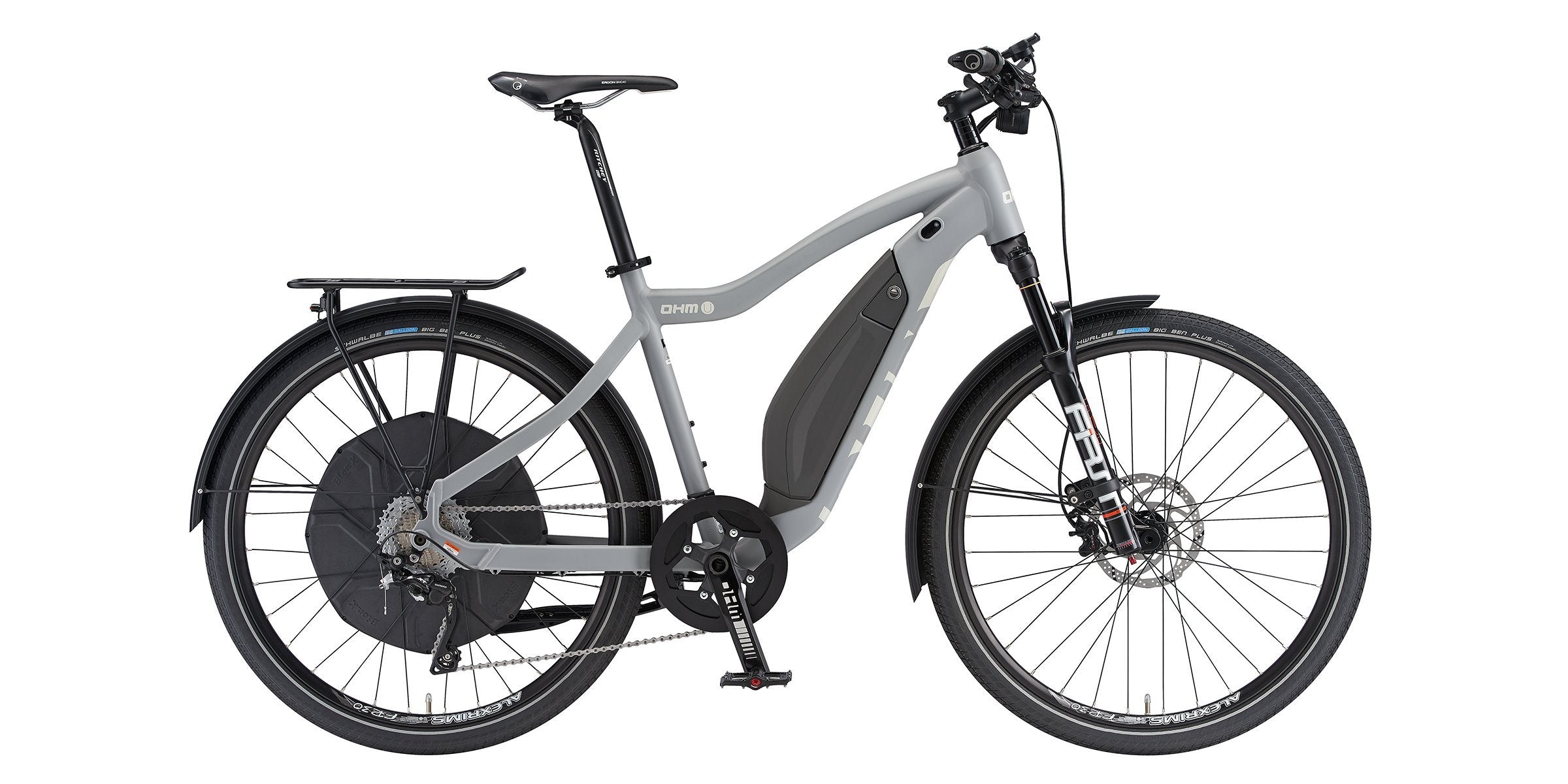

An exceptional commuter e-bike for the urban rider who values quality, performance, and thoughtful design. Negotiate city streets, zip up hills and stop on a dime, on this resilient, smooth-riding electric bike that’s loaded with all the extras.

    Select options

    Size Guide

    $3,999.00 USD

    Estimated Delivery: 7-9 Days

    Smarter, Safer, City Ride

    For the urban rider who values quality, performance and thoughtful design.


    1. Drive System

    500W Direct Drive for instant acceleration and silent operation.

    2. Hydroformed Frame

    Reinforced hydroformed aluminum with semi-integrated battery.

    3. Commuter Package

    Integrated carrier and fenders with front and rear LED Lighting plus upgraded RST suspension fork.

    Tech Specs

    Drive System

    Drive System BionX D 500 DV 142
    Motor 500W
    Torque 25/50Nm (18/37lb-ft)
    Max Assist 300%
    Battery Integrated 555Wh, w/ Bluetooth
    Range Up to 130km (80 mi)


    Frame Premium Hydroformed Aluminum, 27.5" Touring Geometry, Tapered Headtube, Internal cable routing, Post mount brakes
    RST F1RST 110-15mm, Air Spring, Tapered Steerer, Hydraulic damping and speed lock, Boost 15x110 thru-axle, 100mm travel
    RST F1RST 110-15mm, Air Spring, Tapered Steerer, Hydraulic damping and speed lock, 15QLC thru-axle, 100mm travel
    Stem Promax, DA-230, 6 degree rise, 31.8mm clamp with light mount
    Handlebar Ritchey Comp Riser, 670mm wide, 9 degree sweep, 35mm rise, 31.8mm


    Front Brake TRP ZURICH, Hydraulic Disc, Forged Aluminum, Post Mount, 180mm rotor
    Rear Brake TRP ZURICH, Hydraulic Disc, Forged Aluminum, Post Mount, 180mm rotor
    Brake Levers TRP ZURICH, 4-Finger Lever Blade with integrated regenerative brake reed switch
    Front Derailleur -
    Rear Derailleur SHIMANO DEORE XT, RD-M786, 10-Speed Top-Normal, Shadow+
    Shift Levers SHIMANO DEORE SL-M670, 10-Speed, W/O Optical Gear Display
    Cassette SHIMANO CS-HG81-10, 10-SPEED, 11-36T
    Chain/Belt KMC X10-1 EPT, MTB 10-SPEED
    Crankset OHM TAF38 CL50, 48T, w/Chainguard, S/M: 170mm L/XL: 175mm
    Bottom Bracket GXP BSA, Sealed Cartridge
    Pedals WELLGO M6G-AL, Aluminum forged, Anodized, CR-MO spindle
    Grips ERGON GP1, Optimized Pressure Management, Black
    Saddle ERGON SMC 4 Sport Gel


    Rims ALEX FR30, 32H, Stainless Single Eyelets
    Front Hub Novatec,15mm thru-axle, 32H, Anodized
    Spokes Sapim Strong, 2.3 - 2.0 mm
    Tires 27.5 x 2.0" Schwalbe BIG BEN PLUS, Green Guard, 50 EPI, 35-70 psi


    Lights SUPERNOVA E3 E-Bike and FR Tail Light2, 6V
    Fenders Integrated Racktime Wingee mudguards, Extruded aluminum
    Rear Carry Rack Integrated Racktime Carrier, RTA foot system
    Chain Guard With crankset
    Kickstand Pletscher Zoom


    Frame Lifetime
    BionX Drive System 2 years
    Components 1 year

    Your Top 5 Questions, Answered

    One battery charge will last about 40-90km. The battery will last up to five years – or 1000 complete cycles.

    Yes! The motor features regenerative braking, which recharges the battery while riding. Riders can select from four regeneration modes and the system automatically recharges when the rear brake is applied. On average, the battery’s range can be extended up to 15% on each ride. This setting is most useful in situations where you're going downhill, which will help control your speed and boost your battery!

    Only when you want to. In pedal assist mode the motor automatically provides assistance proportionate to the rider’s pedalling effort. The harder the rider pedals, the more the assistance the system will provide. In throttle mode, the rider can propel the bike without pedalling.

    OHM uses Li-Ion batteries that have a no “memory effect.” You can charge the battery at any time regardless of its state of charge. Please note that this does not affect the overall performance of your system. When not in use for a longer period of time, batteries should be stored fully charged and be fully recharged at least once every 3 months. Please also follow the instructions in the manual regarding the proper storage of batteries. In any case, a deep discharge of the battery has to be avoided.

    OHM electric bicycle’s maximum speed in power mode is programmable and can be adapted to the local regulations of any country.
