170
Km (105mi)
3.5
Hours
504
Wh
Electric Bike Review
highly reviewed by EBR
"A feature complete commuter e-bike from a reputable company that uses great brand-name components, powered by a Shimano mid-drive motor and drive-train, quality and reputation is the name of the game, OHM has been in the e-bike world since 2005, a lot longer than most companies out there."
Build Package Specs
| Features | |
| Battery | 504Wh Li-ion |
| Carry Rack | OHM integrated, direct fender mount, Racktime |
| Head Light | Lezyne E-bike Mini STVZO E65 - 210 lumens (65 Lux) |
| Tail Light | Lezyne E-bike Rear Super Bright STVZO E12- 12 lumens |
| Fenders | OHM Wingee, 50mm, stainless steel stays |
| Frame | |
| Sizes | 16.5", 18.5", 20.5", 22.5" |
| Color | Graphite Grey, Pacific Blue |
| Frame | Premium Hyrdroformed Aluminum |
| Fork | ADVANCE aluminum, Tapered steerer, 12x100 thru-axle |
| Stem | Promax, DA-230, 17-degree rise, 31.8mm clamp with light mount |
| Components | |

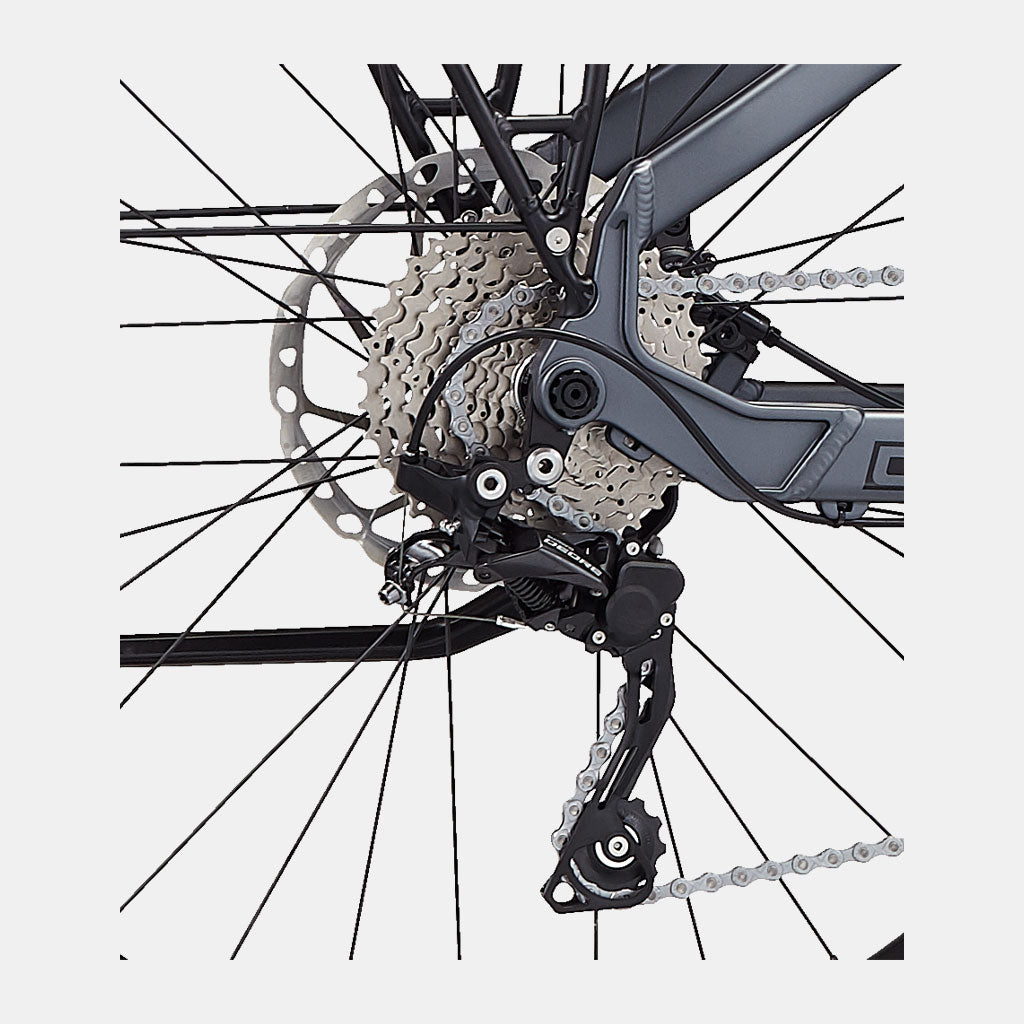

| Rear Derailleur | Shimano Deore, 10-speed, shadow + |
| Shifters | Shimano Deore w/o Optical Gear Display |
| Cassette | Shimano CS-HG81-10, 10spd, 11-36T |
| Chain | KMC e.10 Sport, e-bike optimized |
| Crankset | OHM Forged Alloy CL50, 46T, w/Chainguard, S/M: 170mm L/XL: 175mm |
| Pedals | Wellgo Aluminum Platform |
| Grips | Ergon GP1 Single Density |
| Saddle | Ergon ST Gel Comfort |
| Kickstand | Pletscher Comp 40 Rear Mount |
| Brakes | Shimano Deore, Hydraulic disc, 180mm, |

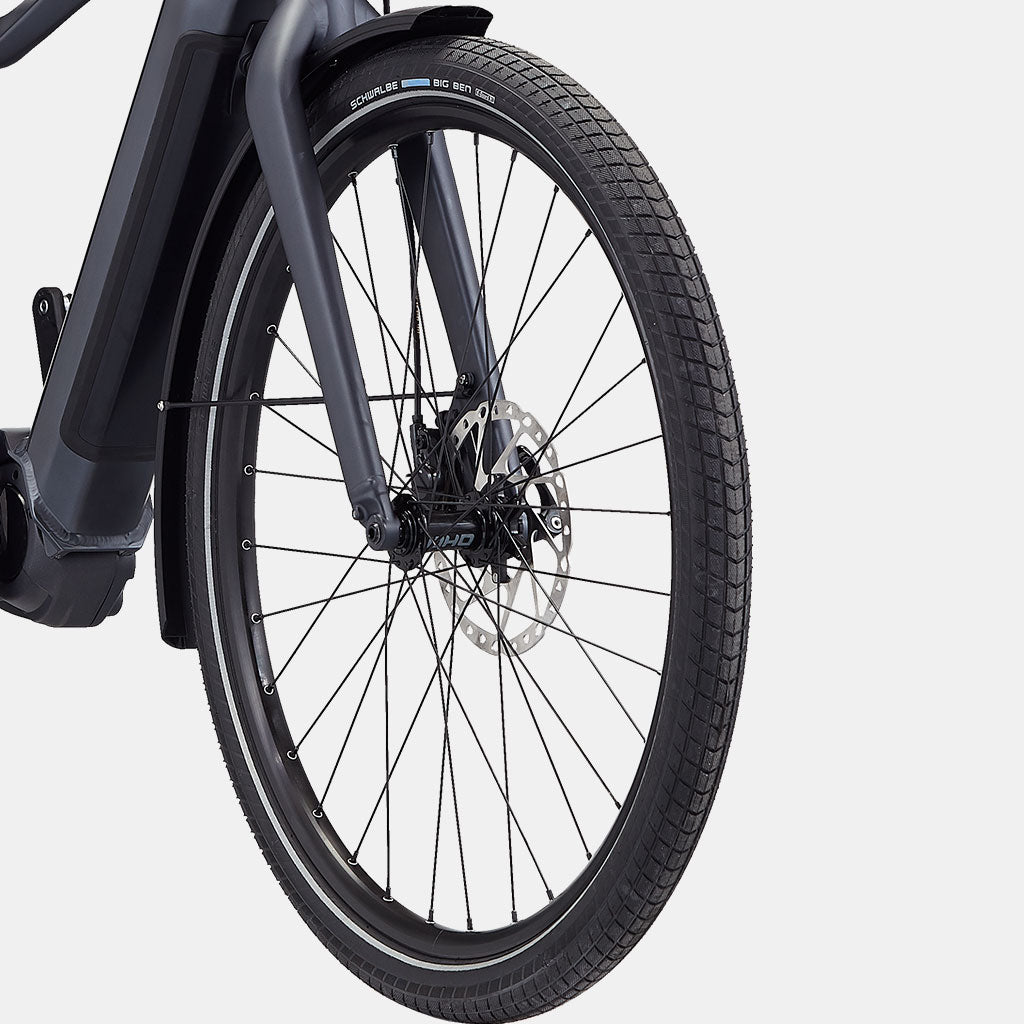

| Wheels | |
| Rims | Alex FR30, 32H, Stainless Single Eyelets |
| Front Hub | OHM Novatec, sealed bearings, 15mm thru-axle, 32H, Anodized |
| Rear Hub | OHM Novatec, sealed bearings, 12x142mm thru-axle, 32H, Anodized |
| Tires | 27.5x2.0" Schwalbe BIG BEN, K Guard, 50 EPI, 35-70 psi |
| Drive System | |
| Motor | Shimano E6100, 50Nm, 2.8kg, 250W Nominal |
| Display | Shimano E7000 LCD black-white display with a handlebar mount, BT |
| Charger | Smart Charger, 42V4A |
Frame Geometry
| Frame | S | M | L | XL |
| Size | 16.5" | 18.5" | 20.5" | 22.5" |
| Rider Height (in) | <5'5" | 5'5"-5'10" | 5'8"-6'2" | 6'2"< |
| Rider Height (cm) | <166 | 166-178 | 175-188 | 185< |
| Top Tube Length | 570mm | 580mm | 600mm | 620mm |
| Bottom Bracket Ht | 305mm | 305mm | 305mm | 305mm |
| Head Tube Angle | 70' | 70' | 70' | 70' |
| Seat Tube Angle | 72.3' | 72.3' | 72.3' | 72.3' |
| Wheelbase | 1079mm | 1089mm | 1109mm | 1129mm |
| Reach | 394mm | 404mm | 424mm | 444mm |
| Standover | 659mm | 699mm | 731mm | 763mm |

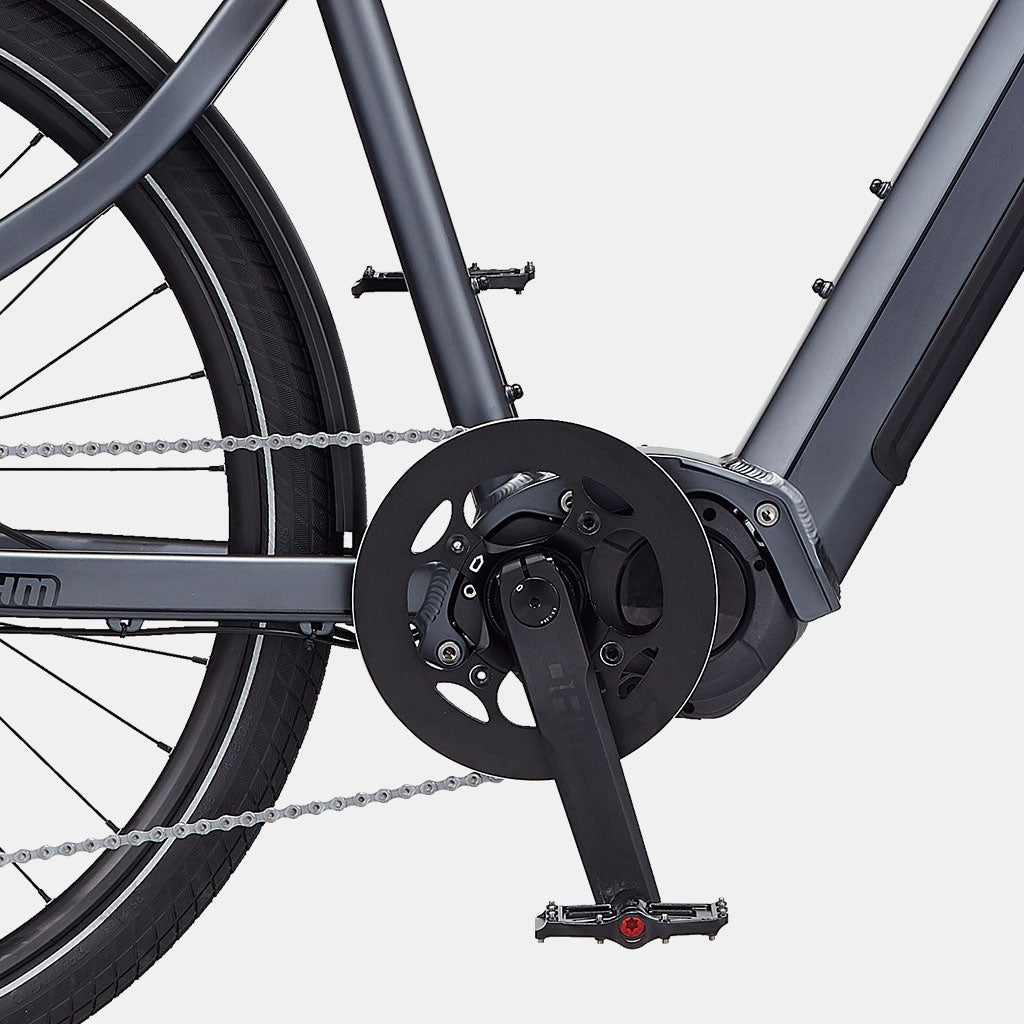

Shimano E6100
MOTOR
Powerful lightweight motor designed for optimal power transfer to deliver maximum distance and pleasure
- Extremely low weight of 2.88 kg
- Drive unit saves 20% energy (vs E6000) for increased range
- Smooth, intelligent pedaling support that’s easy to operate
Shimano E6100
BATTERY
Fast-charging, high capacity Li-Ion battery gets you there … and back!
- Supported travel up to 170 km on one charge
- 1,000 charge cycles with no significant power loss
- Quick charging time for those who are always on the go
Shimano E6100
SWITCH UNIT & SCREEN
Lightweight, low profile display that’s designed for off-road riding.
- Bluetooth LE / ANT private
- 4 cm (1.39 in) LCD black-white display with handlebar mount
- Display functions include time, assist mode, battery charge level, speed, distance, total mileage, riding time, estimated range, cadence, error messages
- Wirelessly customize your preferences from smartphone or tablet using E-TUBE app
Read More
Brakes
Feel safe riding in any weather with Shimano Deore dual piston brakes. Hydraulic lever with reach adjust and an optimized braking curve designed for the regular rider. More stable brake performance in various conditions without changing lever position.
Quality Accessories
The Discover is decked out with quality accessories. Enjoy the Lezyne Mini head light, tail light, and integrated carrier rack and fenders. The Lezyne Mini has three amazing features: it’s sleek, bright and lightweight. With no switch, it runs nonstop.
finish
Our custom designed hyroformed Advance Alloy frame sets OHM E-bikes a head above the rest. Every detail has been carefully curated to insure the smoothest, most powerful ride. The Legacy series slim and sleek form guarantees you arrive in style and comfort.
